Solar Module Controller

SMC-02

  • Class 1 Div 2 Rated
  • Supports up to 40 Watt Solar Panels
  • MPPT - Automatic Voltage Steering
  • Charges 12 Volt Sealed Lead Acid Batteries
  • LED Indication of Charging or Fault Status
  • DIN Rail Mountable
  • Solar Panel and Battery Temperature Compensation

Downloads

Technical Notes

Manuals & Datasheets

Software

  • Sorry! Nothing here yet, or not applicable.

Photos

T

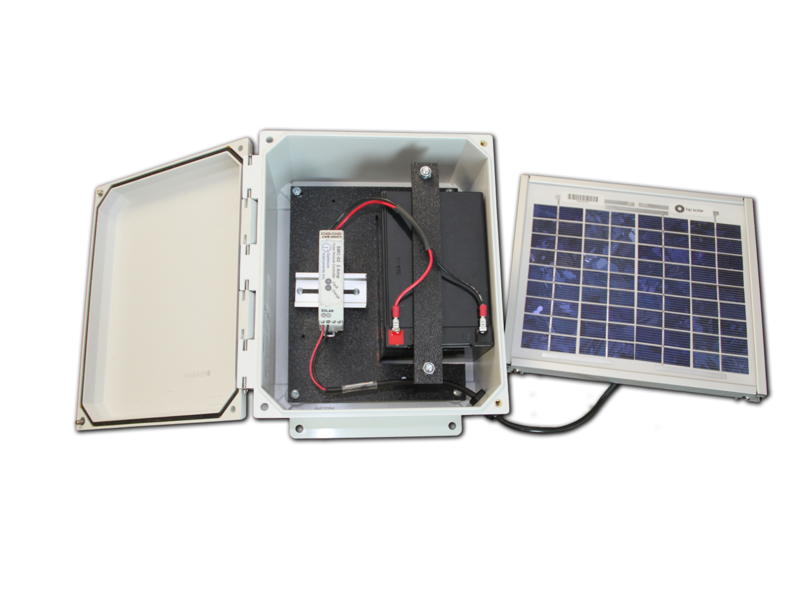

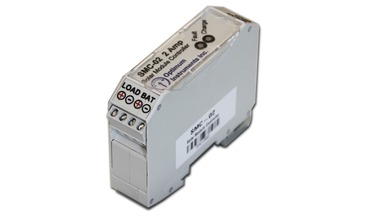

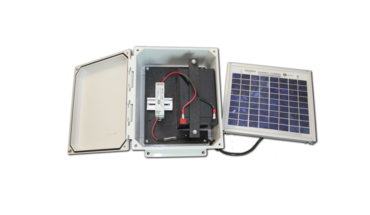

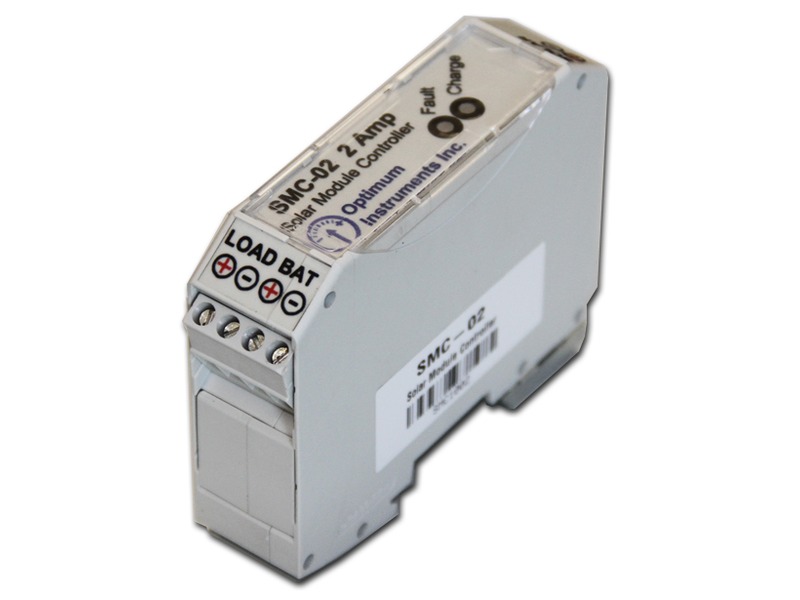

he SMC-02 is an efficient solar module controller that can be used to keep a sealed lead acid battery topped off with a solar panel while handling up to 40 watt size.

Designed for use in harsh places, the SMC-02 is Class 1 Div 2 approved. The controller features built in battery and solar module temperature compensation.

Programmable charge rate up to 2 amps.

The SMC-02 automatically steers the voltage to the point of maximum power output of the solar panel even though the output is varying due to light intensity changes. Standard solar controllers will simply stop charging the battery when illumination levels are below the chargers full power requirements.

Part Numbers

SMC-02

To Order, Call Us At 866-865-9778!

SPECIFICATIONS

Electrical
Mechanical
Environmental
Power Requirements

Solar Panel Voltage Range: 14-30 VDC
Solar Panel Wattage Range: Up to 40 W
Load Current Range: Up to 4 A

Case Material

Polyamide Enclosure

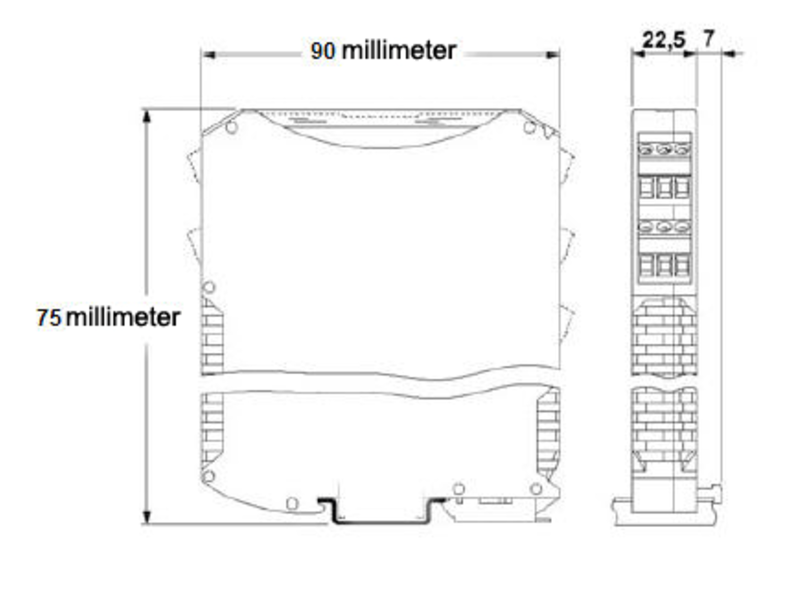

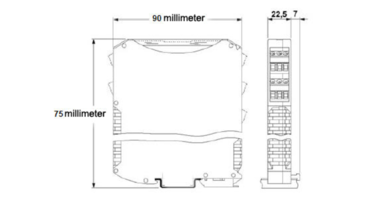

Dimensions

Size (cm) 9.0 x 2.25 x 7.5
Size (inches) 3.5 x 0.88 x 2.95
Weight kg (lbs) 0.025kg (0.055 lbs)

Operating Temperature Range

Standard: -40 to +60°C

Approvals

Class 1 Div 2 Groups C, D, T3 CSA Std C22.2 No 213, 14, E79-15-95
