Magnetic Pickup Conditioner


  • Class 1 Div 2 Rated
  • Supports up to 24 VDC Power Supply
  • Draws very little current (~40uA)
  • Output signal can drive up to 20mA
  • Gain bandwidth product of 200kHz
  • DIN Rail Mountable


Technical Notes

Manuals & Datasheets


  • Sorry! Nothing here yet, or not applicable.

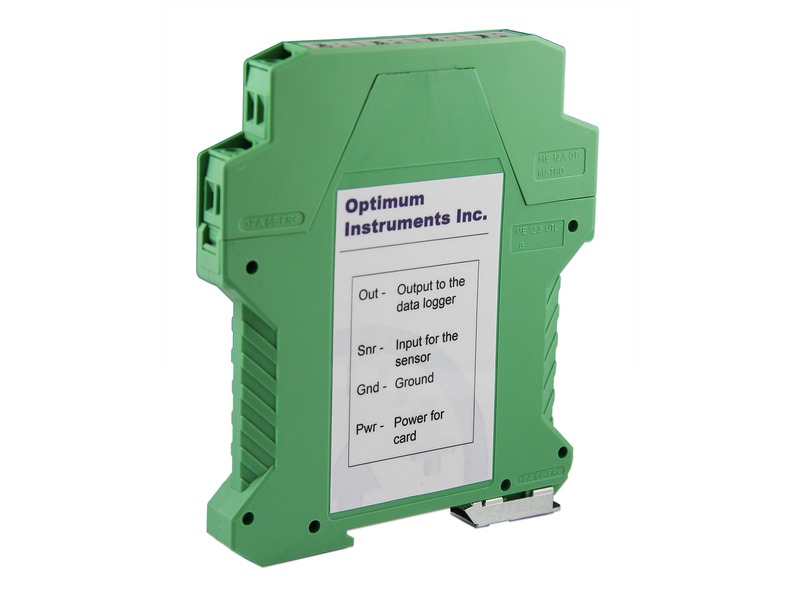

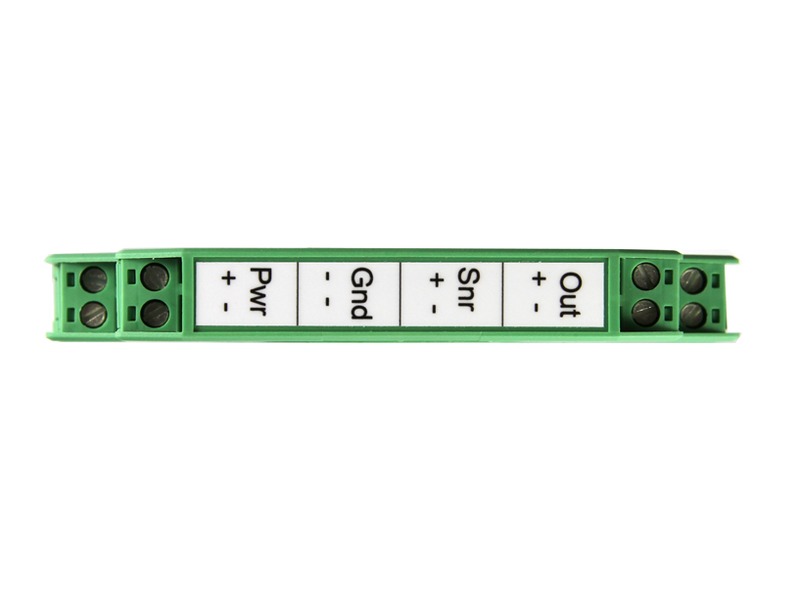

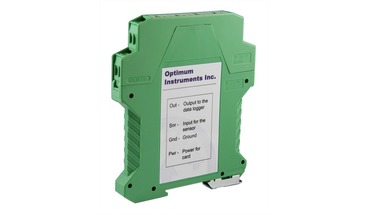

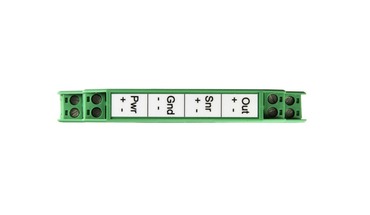

he MPC-100 is a low power signal conditioner that can be used with typical 12VDC supplies and be DIN rail mounted with equipment

Designed for use in harsh places, the MPC-100 is Class 1 Div 2 approved. The module has reverse supply protection and is to be used with 24 VDC 100mA max transient protected power.

The MPC-100 automatically converts the input wave to a rail-to-rail amplified square output for a wide input frequency and voltage range to condition your signal for accurate counting. Meter outputs can typically be too weak to drive a data logger or PLC input, which can lead to lost data.

Signal conditioners are also sometimes referred to as signal amplifiers, isolation amplifiers, signal transmitters, ground loop isolators, 4-20ma converters, 4-20ma signal isolators or 4-20ma loop isolators. The MPC-100 is for frequency wave input.

Part Numbers


To Order, Call Us At 866-865-9778!


Power Requirements

Power Supply Voltage Range: 2.5 - 24 VDC
Input Range: Up to 44 VDC
Typical Current Draw: 40 uA

Case Material

Polyamide Enclosure


Size (cm) 9.85 x 1.27 x 11.3
Size (inches) 3.875 x 0.50 x 4.45
Weight kg (lbs) 0.025kg (0.055 lbs)

Operating Temperature Range

Standard: -40 to +60°C


Class 1 Div 2 Groups C, D, T3 CSA Std C22.2 No 213, 14, E79-15-95
