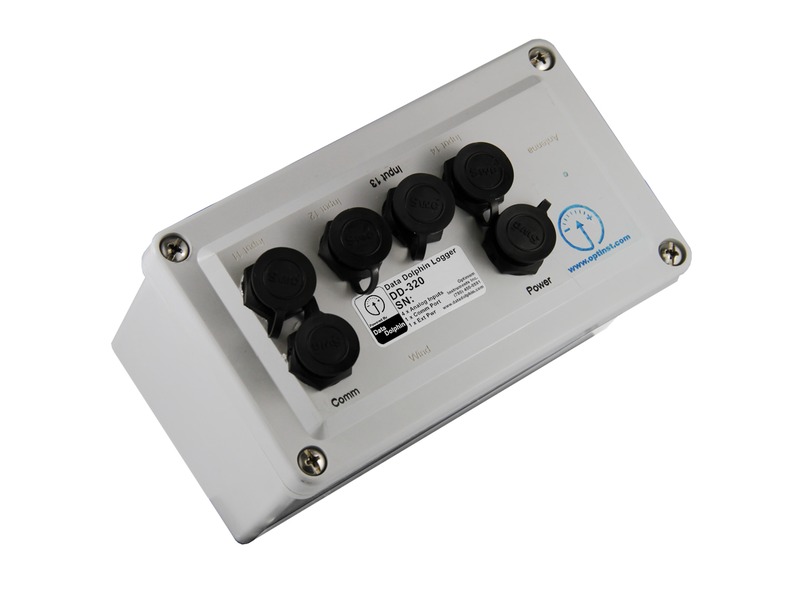

Data Dolphin Model 320


  • Voltage/Current/Frequency/Status Recorder
  • 4 IP68 External Channels with 24 bit ATD
  • Internal 32 Ahr Lithium Battery Pack* Low Power Battery Operation
  • Digital Communications ANSI 12.18, Satellite and Modbus (Push and Poll)
  • Wireless Ready
  • Non-Volatile Flash Memory


Technical Notes

Manuals & Datasheets

  • Sorry! Nothing here yet, or not applicable.



he Data Dolphin provides the accuracy of a laboratory instrument in the harsh conditions of the field environment. The ultra-high resolution 24 bit analog to digital section provides 4 differential bipolar inputs with resolution down to 90 nano volts (.00000009 volts). This allows most sensors to be directly connected without any signal conditioning. Analog and digital filtering for these 4 inputs is provided. There are an additional four inputs that can be user selected as pulse, status or analog inputs.

Data is stored in a non-volatile flash memory module that gives long term storage without the fear of losing your data because of dead batteries. The data is stored in a database structure, allowing you to add or delete inputs "on the fly" without having to restart the data logger. Even the sample rate can be changed without restarting.

Designed for field use it’s operating temperature range goes from – 40 C (-55 C special order) to over 75 C and all inputs have static protection and is also sealed inside a NEMA IP-68 water proof case.

An external 12 volt source such as a rechargeable battery pack and/or alkaline battery pack can be connected. An internal Lithium battery pack allows the Data Dolphin to keep running under extreme cold temperatures. The Data Dolphin’s extremely low operating current gives the data logger an expected battery life measured in years (depends on sample rate, and sensors).

Data collection, programming and viewing collected data is a breeze with the Data Dolphin Software. It allows you to view the current status, set up the data logger, and generate graphs.

Part Numbers


To Order, Call Us At 866-865-9778!



Maximum Input Voltage: 0 V to +2.5 V (0-20mA)
Analog Voltage Resolution: 1 µV
A/D Bits: 24
Input Impedance: 20 Gohm
Scan Interval: 3 to 100 Hz
Excitation Channels: 2
Excitation Voltage 1: +2500 mV
Excitation Voltage 2: +15000 mV

  • 4 - 24bit Single Ended Analogs or 4 Differentials or Combination of both (1 Differential = 2 Analogs)
  • 4 - Counter/Status
Power Requirements

Quiescent Current: < 400 µAmp (Typical)
Processing Current: 3 mA


Flash Memory: 4 MB
Data Values: 233,472 (1 Precision Input)

Case Material

Sealed Fibreglass


Size (cm) 20.32 x 7.62 x 8.89
Size (inches) 8 x 3 x 3.5

Operating Temperature Range

Standard -40 to +60°C
Extended -55 to +80°C

Enclosure Ratings
