Solar Module System

SMS-0425

  • Solar Power Tracking – Automatic Voltage Steering
  • Works with a panel in nearly all light conditions
  • Designed for 4 Volt Sealed Lead CYCLON® Pack
  • LED Indication of charging or fault status
  • Ready with either 5W or 10W Solar Panel
  • 25 Amp Hours of battery

Downloads

Technical Notes

Manuals & Datasheets

Software

  • Sorry! Nothing here yet, or not applicable.

Photos

T

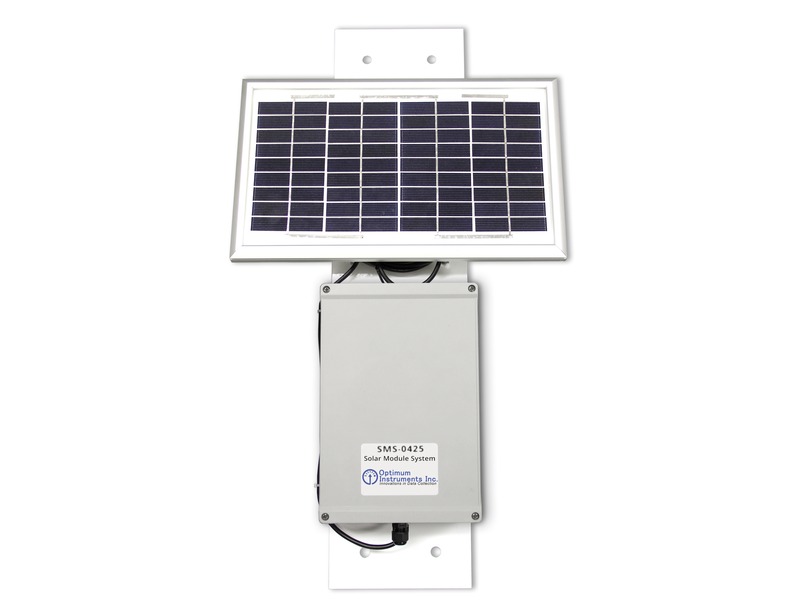

he SMS-0425 is an efficient solar module controller and battery combination that can be used to keep your equipment powered and running all season.

Designed for use in harsh environments, the SMS-0425 comes with a pole mountable IP66 & NEMA 4, 4X, 12 & 13, UL94 5V rated enclosure. The controller features built in battery and solar module temperature compensation, in order to monitor both its environment and the battery it charges.

The SMS-0425 automatically steers the voltage to the point of maximum power output of the solar panel even though the output is varying due to light intensity changes. Standard solar controllers will simply stop charging the battery when illumination levels are below the chargers full power requirements. This ensures your equipment will be getting the power it needs. A sealed cable gland provides point of entry for power to be brought out from the SMS-0425.

Comes with a 5W or 10W mounted solar panel and all necessary pole mounting hardware.

Part Numbers

SMS-0425-5
SMS-0425-10

To Order, Call Us At 866-865-9778!

SPECIFICATIONS

Electrical
Mechanical
Environmental
Power Requirements

Solar Panel Voltage Range: 6 to 30 VDC
Solar Panel Wattage Range: 5 to 10W

Case Material

Powder Painted Aluminum Backplate
Polycarbonate Enclosure

Dimensions

Size (cm)
Size (inches)
Weight kg ( lbs)

Operating Temperature Range

Standard: -40 to +60°C

Enclosure Ratings

NEMA 4, 4X, 12 & 13
UL94 5V
