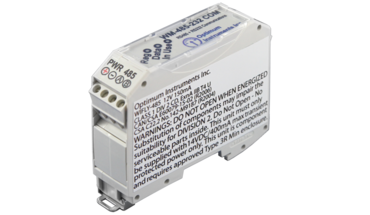

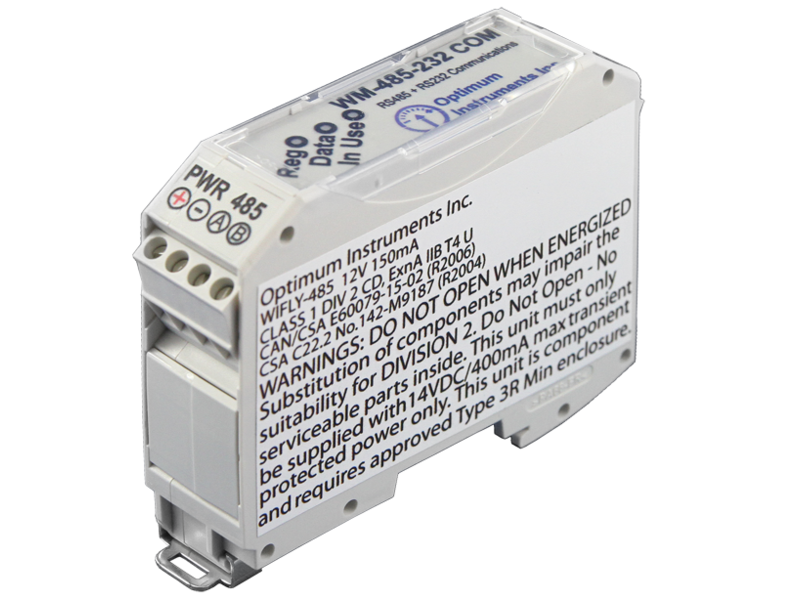

RS485/232 WiFi Module


  • Wirelessly enable existing equipment
  • Sleep modes for a long battery life
  • Can create a network or join existing networks
  • 12 or 24 VDC Powered
  • Connect sensors and meters to the Internet
  • RS-232 and RS-485 Communication built in for high compatibility with equipment
  • ~500µA sleep current. ~16mA awake


Technical Notes

Manuals & Datasheets


  • Sorry! Nothing here yet, or not applicable.



he WM-485/232 uses 802.11 b/g WiFi technology to wirelessly enable equipment in hard to reach or dangerous locations. By connecting your manually checked meters or sensors to the WM-485/232, no longer will you have to be within arms reach to see your data.

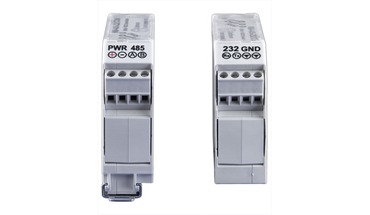

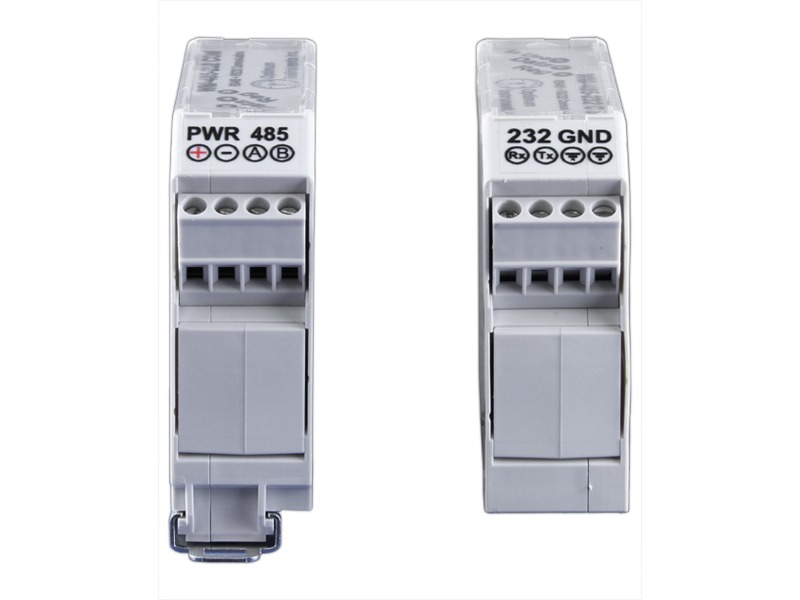

Designed for field use, the WM-485/232 is Class 1 Div 2 approved. To maintain ease of use, the WM-485/232 accepts a wide power input range with clearly labeled screw terminals. Low operating power gives this module a long life. When paired with the SMC-02 solar controller or in a full SMS-1212 system, you’ll never have to worry about it losing power.

The WM-485/232 when used with a Virtual COM Port redirector means you can use your existing software as you always have, but from another location completely.

Able to start a network, you don't always need existing infrastructure to take advantage of WiFi. You can connect directly to the WM-485-232 with your laptop easily, or if existing WiFi networks exist, the module can be made to join them and be accessible from virtually anywhere.

Part Numbers
No Longer Available for New Purchases

To Order, Call Us At 866-865-9778!


  • 1 - RS-485
  • 1 - RS-232
Power Requirements

Quiescent Current: < 540 µAmp (Typical)
Awake Current: 16 mA
Voltage Input Range: 6 to 30 VDC

Case Material



Size (cm) 9 x 2.25 x 7.5
Size (inches) 3.5 x 0.88 x 2.95
Weight 0.025kg (0.055lbs)

Operating Temperature Range

Standard: -40 to +60°C


Class 1 Div 2 Groups C, D, T3 CSA Std C22.2 No 213, 14, E79-15-95
